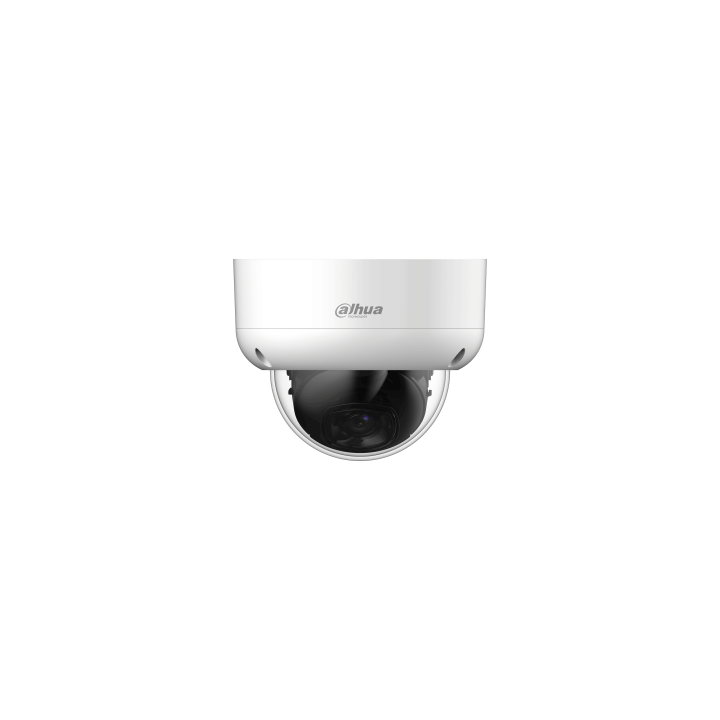

HAC-HDBW1801EAP-A-0280B-S2

Dôme HDCVI/CVBS/AHD/TVI blanc - 8 Mp - FF 2.8mm - IR 40m - Micro - IP67 - IK10 - 12V

Technical Specification

Camera Pixel 8 MP - Image Sensor 4K

CMOS Max. Resolution 3840 (H) × 2160 (V)

Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s Min.

Illumination 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >65 dB Illumination

Distance 40 m (131.23 ft)

Illuminator On/Off

Control Auto/Manual

Illuminator Number 3 (IR light)

Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–75°

Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max.

Aperture F2.0 Field of View 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 88°; V: 46°; D: 105°

Iris Control Fixed Close Focus Distance 2.8 mm: 1.3 m (4.27 ft) 3.6 mm: 1.9 m (6.23 ft)

DORI Distance Lens Detect Observe Recognize Identify:

- 2.8 mm : 88 m (288.71 ft) 35.2 m (115.49 ft) 17.6 m (57.74 ft) 8.8 m (28.87 ft)

- 3.6 mm:  106.7 m (350.07 ft) 42.7 m (140.09 ft) 21.3 m (69.88 ft) 10.7 m (35.10 ft)

Video  Frame Rate : CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H Resolution 4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)

Day/Night Auto(ICR)/Color/B/W BLC BLC; HLC; WDR;

HLC-Pro WDR 120 dB White Balance  - Auto; Area white balance

Gain Control Auto/Manual Noise Reduction 3D NR

Smart Illumination Smart IR Defog Electronic defog Mirror Yes Privacy Masking Off/On (8 areas, rectangle)

Certifications : CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 Port

Video Output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input One channel built-in MIC (-A)

Power Supply 12 VDC ± 30%

Power Consumption:  Max 4.2 W (12 VDC, IR on) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity <95% (RH), non-condensing

Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

Protection IP67; IK10

Structure Casing Material Metal Product

Dimensions Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51")

Packaging Dimensions: 147 mm × 138 mm × 135 mm (5.79" × 5.43" × 5.31")

Net Weight 0.45 kg (0.99 lb) Gross Weight 0.64 kg (1.41 lb)

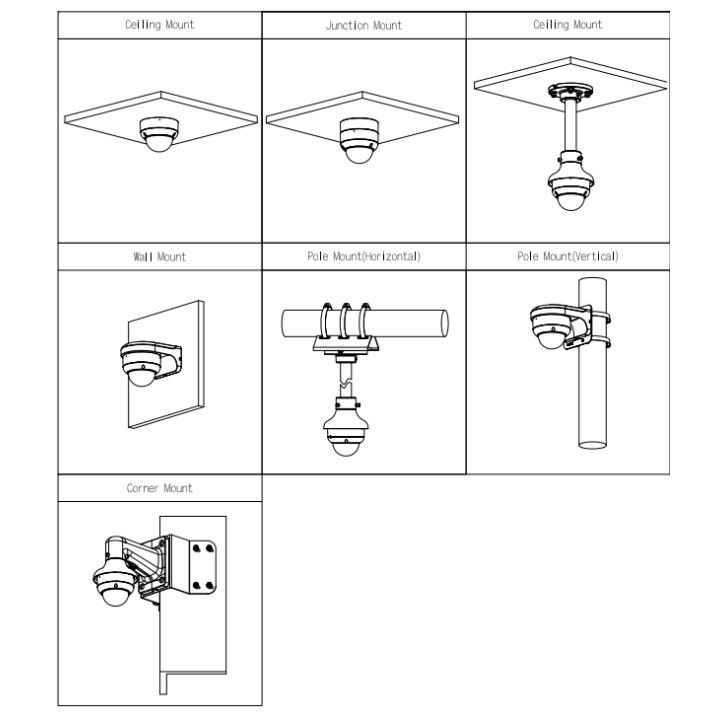

Installation Wall mount; ceiling mount; vertical pole mount

Accessories Optional:

PFA136 Junction Box PFM800-4K Passive HDCVI Balun PFM904 Integrated Mount Tester PFB203W Wall Mount Bracket PFA152-E Pole Mount Bracket PFA106 Mount Adapter PFB220C Ceiling Mount Bracket
