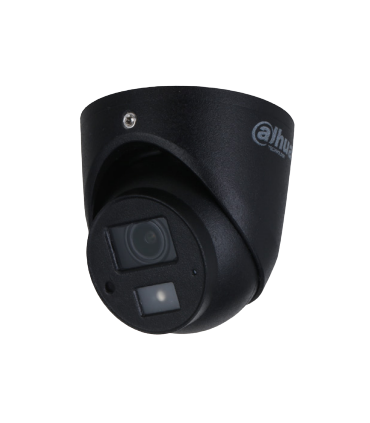

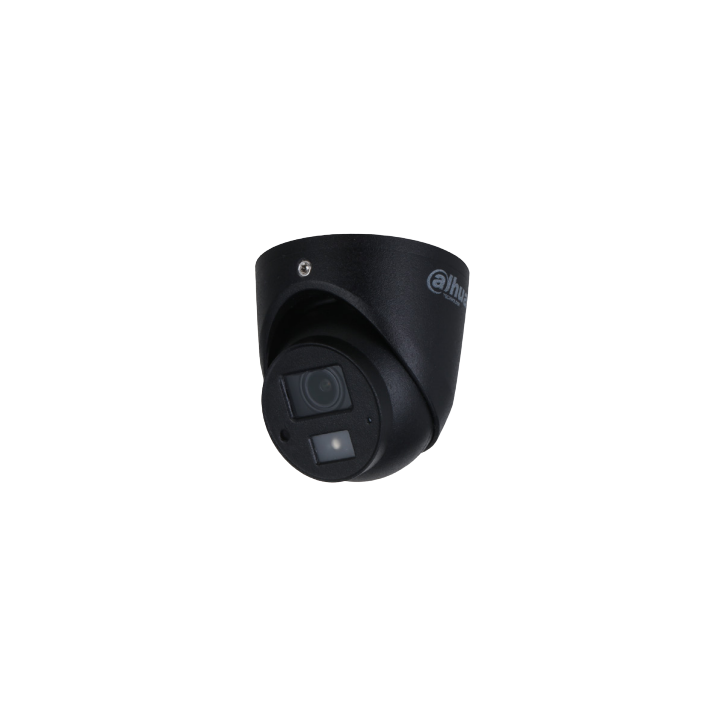

HAC-HDW1231GP-A-0280B

Eyeball HDCVI/TVI/CVBS/AHD noir - 2 Mp - FF 2.8mm - IR 20m - Starlight - Micro - IP67

Camera Image Sensor 1/2.8" CMOS Max.

Resolution 1920 (H) × 1080 (V) Pixel 2MP

Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s S/N Ratio > 65 dB Min.

Illumination 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

Illumination Distance 20 m (65.6 ft)

Illuminator On/Off Control Auto; manual Illuminator Number 1 (IR light)

Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Lens Type Fixed lens Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 102°; V: 54°; D: 120° 3.6 mm: H: 86°; V: 46°; D: 101° Iris Type Fixed iris

Close Focus Distance 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 1.1 m (3.6 ft)

DORI Distance Lens Detect Observe Recognize Identify:

2.8 mm : 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m (25.3 ft) 3.9 m (12.8 ft)

3.6 mm : 53.7 m (176.2 ft) 21.5 m (70.5 ft) 10.7 m (35.1 ft) 5.4 m (17.7 ft)

Video Frame Rate CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night Auto switch by ICR  BLC/WDR/HLC WDR 130 dB

White Balance Auto; Area WB

Gain Control Auto; manual Noise Reduction 3D NR

Smart IR Yes Mirror Off/On Privacy Masking Off/On (8 area, rectangle)

Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in mic

0ower Supply 12 V ±30% DC

Power Consumption Max 2.38 W (12 V DC, IR on)

Environment Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F);< 95% (non-condensation) Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F);< 95% (non-condensation)

Protection Grade IP67

Structure Casing Metal throughout the whole casing Camera

Dimensions Φ62.0 mm × 61.7 mm (Φ2.44" × 2.43")

Net Weight 0.17Kg (0.40 lb) Gross Weight 0.22Kg (0.50 lb) Lite Series | DH-HAC-HDW1231G-A Ordering Information Type Model Description 2M Camera DH-HAC-HDW1231GP-A 2MP Starlight HDCVI IR Eyeball Camera, PAL DH-HAC-HDW1231GN-A 2MP Starlight HDCVI IR Eyeball Camera, NTSC

Accessories (Optional) PFM800-E Passive HDCVI Balun PFM321 12V 1A Power Adapter PFM820 UTC Controller PFM904 Integrated Mount Tester
