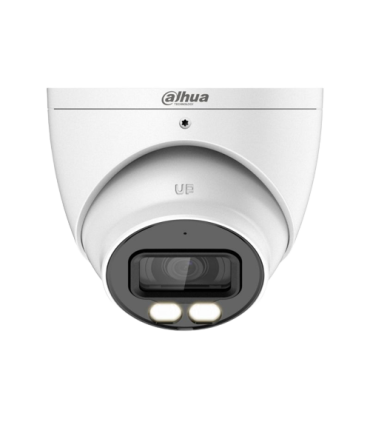

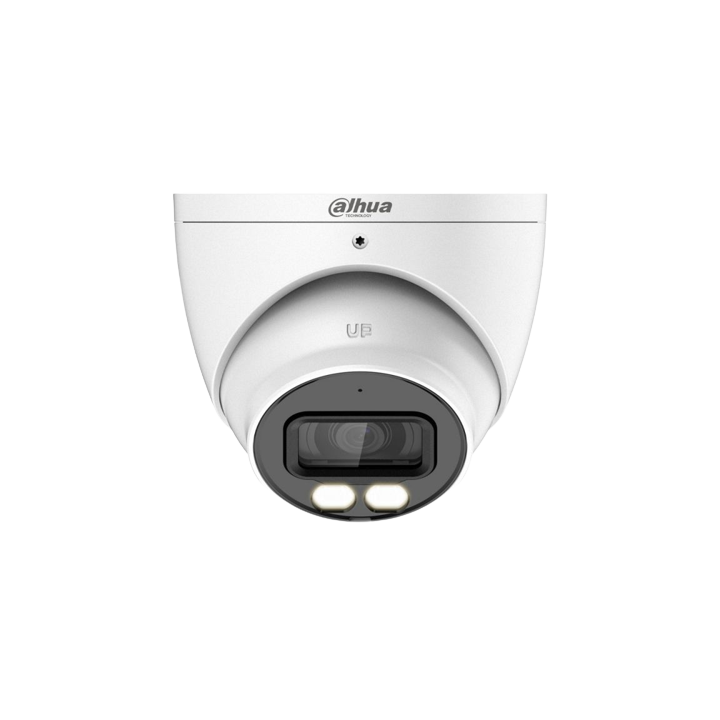

HAC-HDW1509TP-IL-A-0280B-S2

Eyeball AHD/CVBS/CVI/TVI Blanc - 5 MP - FF 3.6 mm - IR 40 m - Micro intégré - IP67 - 12V

Image Sensor 5MP

CMOS Max. Resolution 2880 (H) × 1620 (V)

Scanning System Progressive Electronic Shutter Speed PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s Min.

Illumination 0.001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >65dB

Illumination Distance IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft)

Illuminator On/Off

Control Auto; manual Illuminator Number 2 (IR light) 2 (Warm light)

Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Lens Type Fixed-focal

Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 111°; V: 57°; D: 131° 3.6 mm: H: 89°; V: 47°; D: 104°

Iris Control Fixed Close Focus Distance 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft)

DORI distance Lens Detect Observe Recognize Identify 2.8 mm 66.0 m (216.54 ft) 26.4 m (86.61 ft) 13.2 m (43.31 ft) 6.6 m (21.65 ft) 3.6 mm 78.0 m (255.91 ft) 31.2 m (102.36 ft) 15.6 m (51.18 ft) 7.8 m (25.59 ft)

Video Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; CVBS: PAL: 960H; NTSC: 960H

Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night Auto (ICR)/Color/B/W BLC BLC; HLC; WDR;

HLC-Pro WDR 120 dB White

Balance Auto; Area white balance Gain Control Auto; manual

Noise Reduction 3D NR

Defog Electronic defog Digital Zoom 4× Mirror Yes Privacy Masking Off/On (8 areas, rectangle)

Illumination Mode Smart IR&WL; WL Mode; IR Mode

Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000- 3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in MIC

 Power Supply 12 VDC ± 30%

Power Consumption Max 5.7 W (12 VDC, LED on) Environment

Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity <95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (-40 °F to 140 °F)

Protection IP67

Structure Casing Material Metal Product

Dimensions Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69")

Packaging Dimensions 148 mm × 139 mm × 137 mm (5.83" × 5.47" × 5.39")

Net Weight 0.49 kg (1.08 lb)

Gross Weight 0.66 kg (1.46 lb)

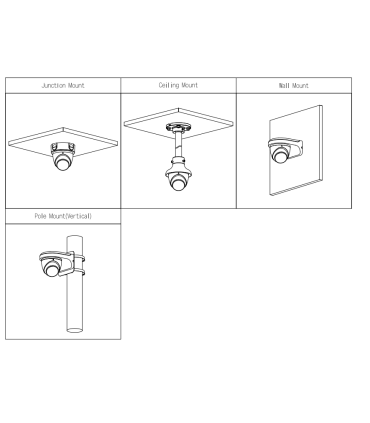

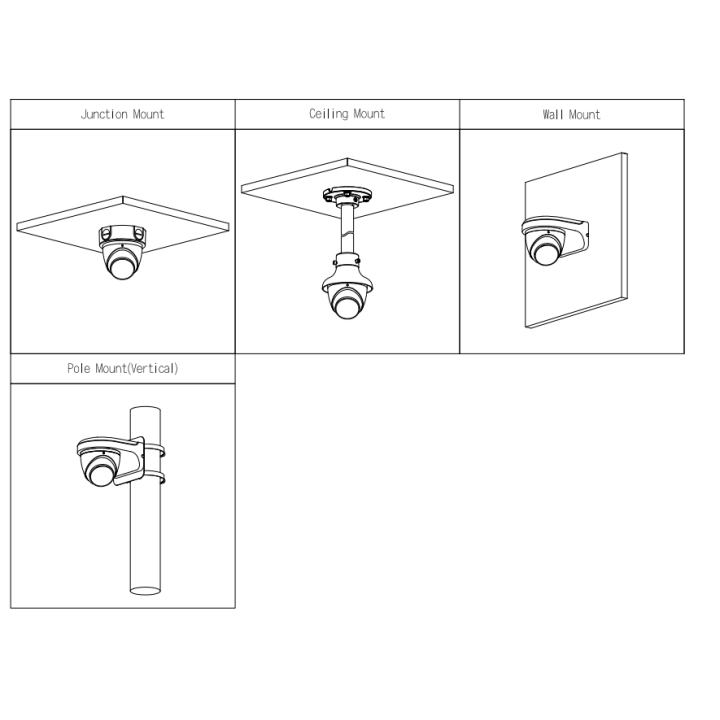

Accessories (Optional) PFA130-E Water-proof Junction Box PFB204W Wall Mount Bracket PFA106 + PFB220C Adapter Plate of Mini Dome & Eyeball Camera + Ceiling Mount Bracket of Mini Dome & Eyeball Camera PFA152-E + PFB204W Pole Mount Bracket + Wall Mount Bracket PFM800-E Passive HDCVI Balun PFM321D 12V 1A Power Adapter PFM904 Integrated Mount
